ISOIL CS611 Thermag Valve with electromagnetic thermal energy meter

Click2Contact

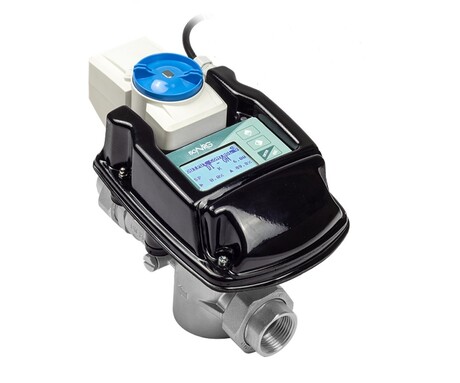

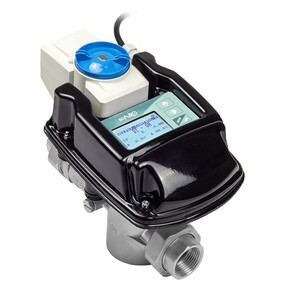

The CS611 Thermag Valve from ISOIL is a 2-way control valve with an integrated electromagnetic thermal energy meter. It provides energy control, energy calculation and billing in accordance with the EN1434 and MID directive 2014/32/EU.

The valve measures and monitors energy consumption in heating and cooling systems, both in new and existing buildings, and is designed to enable full connectivity with building management systems (BMS) and IoT platforms.

It is also able to manage different fluids such as water or water mixed with glycols with high accuracy and approved for billing according to the MID directive 2014/32/EU.

The valve body is made of DZR anticorrosive brass, and the flow sensor is made in PEEK with HC276 electrodes. Both valve and meter are integrated in an all-in-one device with a compact body, reducing the time of installation.

It can be programmed to control the flowrate according to several quantities which can be selected by the BMS through the Ethernet port or the communication protocol (MODbus or BACnet).

Those quantities include flowrate, thermal power, temperature differential, inlet temperature, outlet temperature, pressure differential, and external source from the process or the BMS.
