McCrometer McPropeller M1104 flow meter and AMS Flow Lab

Click2Contact

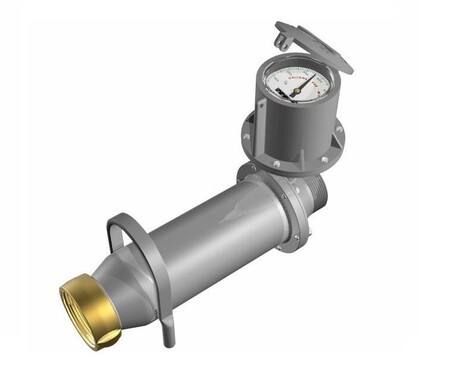

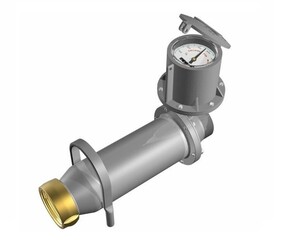

McCrometer’s McPropeller M1104 is a lightweight, durable and transportable mechanical flow meter that can streamline the measurement process for hydrant applications.

Installation is simple and secure, and the flow meter provides a totaliser flow in gallons per minute without the need for calculation.

Constructed of epoxy-coated carbon steel or even stainless steel, the McPropeller M1104 is suitable for short-term flow measurement projects, featuring carrying handles for easy transportation.

The hydrant meter is accurate despite flow disturbers, up to ±2% of reading thanks to stator vanes located in the inlet of the flow tube generating steady, non-rotational water flow.

Meter reading is simple and available through a mechanical register, digital FlowCom register, or FlowConnect telemetry unit. Pressure readings can be displayed by mounting a pressure gauge in the optional ¼″ or 3/8″ NPT pressure ports.

Users can integrate additional sensors such as pressure and temperature and take advantage of output options and data recording options available with the telemetry unit.

The flow lab for the calibration of the M1104 McCrometer Fire Hydrant flow meters has been operating for years and has calibrated many flowmeters.

The specifications of the flow lab are as follows: tank capacity is 5000 L; max flow is 40 L/s (2400 litres/min); and pressure is @300 kPaG. The flow lab is now able to calibrate clamp-on ultrasonic flowmeters.

The flow lab calibration is traceable to National and International Standards with a reference meter certified in a NATA-accredited calibration laboratory.

AMS is the Australian authorised distributor and service agent of the McCrometer range of flowmeters which can competently check and repair equipment prior to certification. AMS also carries a range of spare parts and can provide quick turnarounds.
