Honeycomb design increases ultrathin solar panel efficiency


Friday, 22 April, 2022

Honeycomb design increases ultrathin solar panel efficiency

Researchers from the UK and the Netherlands have successfully increased the levels of energy absorbed by wafer-thin photovoltaic panels by 25%. Their solar panels, measuring just 1 μm thick, are claimed to convert light into electricity more efficiently than others as thin, which should make it easier to generate cleaner, greener energy.

Writing in the journal Photonics, the team detailed how they used characteristics of sunlight to design a disordered honeycomb layer which lies on top of a wafer of silicon. Their approach is echoed in nature in the design of butterfly wings and bird eyes; the innovative honeycomb design enables light absorption from any angle and traps light inside the solar cell, enabling more energy to be generated.

“One of the challenges of working with silicon is that nearly a third of light bounces straight off it without being absorbed and the energy harnessed,” said Dr Marian Florescu, from the University of Surrey’s Advanced Technology Institute (ATI). “A textured layer across the silicon helps tackle this, and our disordered yet hyperuniform honeycomb design is particularly successful.”

Image credit: University of Surrey.

Researchers from the University of Surrey and Imperial College London worked with experimental collaborators at AMOLF in Amsterdam to design, model and create the new ultrathin photovoltaic. In the laboratory, they achieved absorption rates of 26.3 mA/cm2 — a 25% increase on the previous record of 19.72 mA/cm2 achieved in 2017. They secured an efficiency of 21% but anticipate that further improvements will push the figure higher, resulting in efficiencies that are significantly better than many commercially available photovoltaics.

“There’s enormous potential for using ultrathin photovoltaics,” Dr Florescu said. “For example, given how light they are, they will be particularly useful in space and could make new extra-terrestrial projects viable. Since they use so much less silicon, we are hoping there will be cost savings here on Earth as well, plus there could be potential to bring more benefits from the Internet of Things and to create zero-energy buildings powered locally.”

As well as benefiting solar power generation, the findings could also benefit other industries where light management and surface engineering are crucial, such as photo-electrochemistry, solid-state light emission and photodetectors. The next steps for the team will include investigating commercial partners and developing manufacturing techniques.

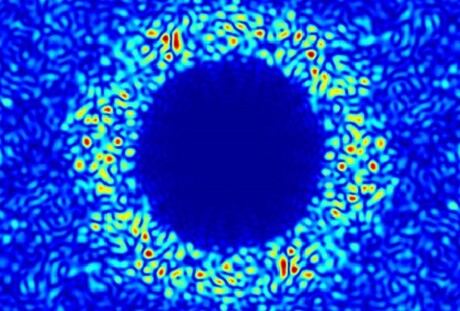

Top image caption: Light scattering from a thin silicon membrane absorbing 65% of sunlight.

Originally published here.
